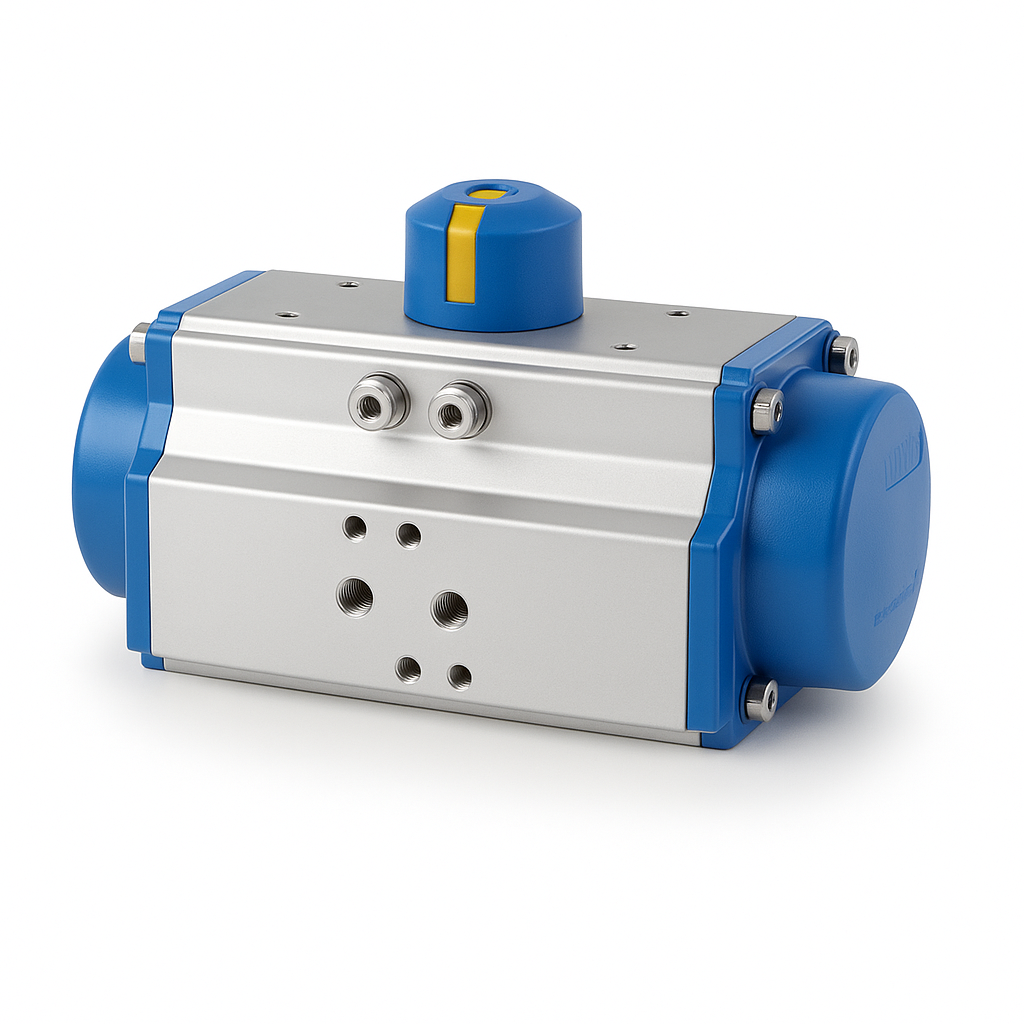

Pneumatic Actuator (Double Acting)

Product Features

• Compact Rack & Pinion Design – Ensures smooth and efficient torque transmission with minimum friction and high reliability.

• Double Acting Operation – Air pressure applied alternately to open and close valves, providing consistent and repeatable motion.

• High-Strength Aluminium Body – Hard-anodized cylinder and epoxy-coated end caps for maximum corrosion resistance and long service life.

• ISO/NAMUR Standard Mounting – Compatible with all standard valve interfaces, solenoid valves, and limit switches for easy automation.

• Low Friction Seals & Bearings – Reduces air consumption and improves cycle life even under high-frequency operations.

• Adjustable Travel Stops (±5°) – Allows fine-tuning of valve open and close positions for precise control.

• Visual Position Indicator – Clearly shows valve position for safety and maintenance convenience.

• Maintenance-Free Design – Lubricated for life and designed for high-cycle industrial environments.

• Operating Pressure: 2.5 to 8 bar

• Rotation Angle: 90° ±5°

• Operating Temperature: –20°C to +80°C (optional high-temp version available)

• Torque Range: 10 Nm to 4000 Nm (model dependent)
