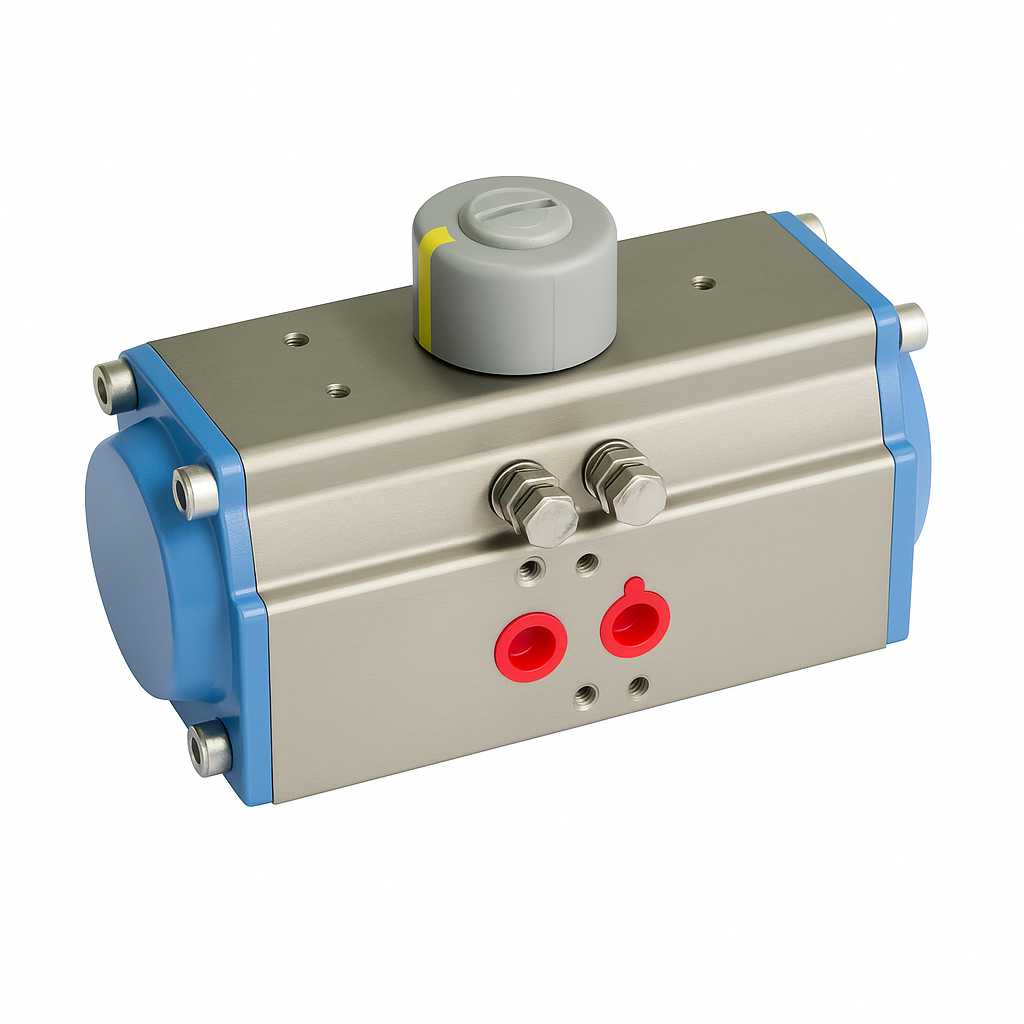

Pneumatic Actuator (Single Acting)

Product Features

• Single Acting (Spring Return) Design – Provides automatic return to the fail-safe position (open or closed) upon air supply loss, ensuring safety in critical applications.

• Rack & Pinion Mechanism – Delivers smooth, balanced torque and compact design for reliable operation.

• Spring Cartridge System – Preloaded, corrosion-resistant steel springs for consistent performance and easy maintenance.

• Lightweight Aluminium Body – Hard-anodized cylinder with epoxy-coated end caps ensures durability and corrosion resistance.

• ISO/NAMUR Standard Mounting – Compatible with all standard valves, limit switches, and solenoid valves for quick installation.

• Low Air Consumption – Efficient air channeling reduces operating costs and increases actuation speed.

• Adjustable Travel Stops (±5°) – Allows precise valve position adjustment for accurate open/close control.

• Visual Position Indicator – Clearly displays valve position, enhancing safety and operation visibility.

• Temperature Range: –20°C to +80°C (optional high/low temp versions available)

• Operating Pressure: 2.5 to 8 bar

• Torque Range: 10 Nm to 3000 Nm (model dependent)

• Rotation Angle: 90° ±5°

Applications:
Ideal for ball valves, butterfly valves, and plug valves in industries such as oil & gas, chemical, water treatment, food processing, and power generation.
